Product Overview
Hearthstone Outdoor Brabura 22" Stainless Steel Griddle
Hearthstone Outdoor Brabura 22 Cast Iron Griddle - 830-2052
The Hearthstone Outdoor 22” cast iron griddle features a 333 square inches of surface cooking area heated by 2 independent burners. There is plenty of space to grill steaks, vegetables, fish, eggs, pancakes, or even up to 16 burgers.
This solid cast iron 22 inch Hearthstone Outdoor griddle has exceptional heat retention properties that provide perfect distribution of heat. Just like premium cast iron cookware, the enameled surface is durable, non-stick, and easy to clean.
The Hearthstone Outdoor Brabura 22 stainless steel griddle includes:
- Griddle for built-in or counter top installation
- Enameled cast iron cooking surface
- Premium hinged stainless steel cover
- Fabric weather cover
Specifications
Model: 830-2052
Griddle surface dimensions: 19” x 17½”
Griddle area: 333 sq in
Burger count: 16
Fuel type: LP
Fuel conversion to NG: Kit included
Number of burners: 2
BTUs per burner: 9,000 BTUs
Total surface BTUs: 18,000 BTUs
Ignition type: Continuous Spark
Control knobs: LED-lit, orange / white
Product dimensions: 22” W x 24-1/8” D x 15-1/2” H
Installation cut-out dimensions: 22-1/16” W x 19-11/16” D x 8-1/4” H

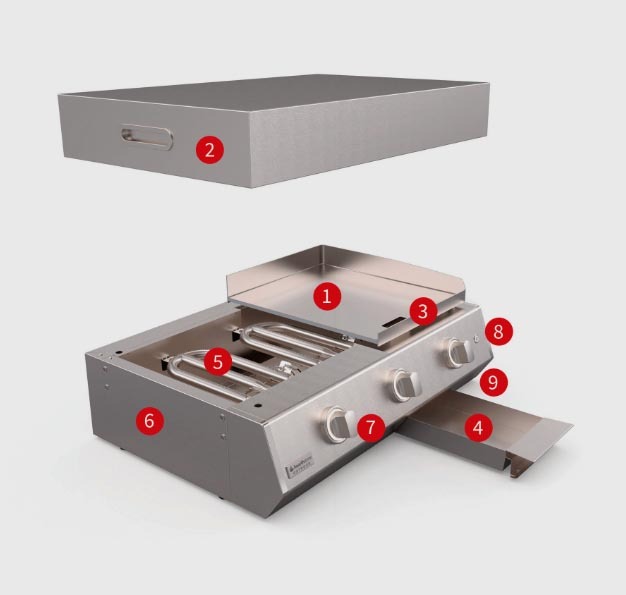

Unique Features
1. 10mm Stainless Steel Griddle
- Thicker than other stainless steel griddles
- Thick steel holds more heat for professional performance
- Durable, metal tools ok
- Easy to clean
- 304 Stainless Steel
2. Removable Stainless Steel Lid
- Covers and protects the griddle when the griddle is not in use
- Supports the fabric weather cover to prevent pooling in any season
- Not for use while cooking
3. Grease Drain
- Move cooking residue to the grease drain during cleanup to collect in the grease tray.
4. Grease Tray
- Catches the residue from the grease drain for easy cleanup
- Empty and clean after every use
5. Independent Zone Burners
- Create different heat zones across the griddle
- 304 Stainless Steel Construction
6. 304 Stainless Steel Chassis
- Weather resistant construction
- Professional look matches other outdoor kitchen appliances
7. LED Burner Controls
- Glow orange when burner is lit
- Continuous spark ignition
8. LED On/Off Switch
- Activates the knob and switch lights
9. Battery Access
- Burner ignition is battery powered
- LED knob lights are powered by a separate battery pack
Installation
The Hearthstone Outdoor Brabura 22 Cast Iron Griddle Designed for Propane & Natural Gas.
The Brabura 22 griddle is factory set to burn liquid propane gas. A regulator is installed and leak tested, so all you have to do is connect to a propane tank. Plumbed installations are also possible for both propane and natural gas. If using natural gas, each burner must be converted using the included components.
HearthStone Outdoor Griddles must be located outdoors.
- Locate the Brabura 22 Griddle in a well-ventilated area.
- The counter and supporting ledges or deck must be level and flat.
- The enclosure should have ventilation holes to prevent gas build-up in the event of a leak.
Use the HearthStone Outdoor Build-in Liner for installation into a combustible enclosure.
Allow 24" from the sides and rear to combustible construction while in operation.
Please check your local codes.
