Product Overview
Kingsman 36" Zero Clearance, Direct Vent, Gas Fireplace - ZCV3622
The Kingsman 36" Zero Clearance, Direct Vent, Gas Fireplace lets you enjoy the elegance and warmth of glowing embers and dancing flames combined with a traditional oak log set. This Kingsman ZCV3622 zero clearance fireplalcle is sure to become the focal point of your home. You can choose from a variety of decorative options to create your own unique and distinctive appearance and be assured of complete safety, comfort and long lasting value. With a fully sealed combustion chamber there is no pollution spillage to depreciate the indoor air quality of your home.
The Kingsman ZCV3622 Direct Vent Gas Fireplace allows you to customize a look to fit your style by choosing an interior decorative liner available in porcelain reflective and brick patterns. The millivolt valve system in this Kingsman zero clearance gas fireplace does not use electricity, but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation. This Direct Vent fireplace has a flame sensor that continuously monitors the pilot flame and provides 100% gas shut off if the pilot is not sensed, offering safety and reliability throughout your fireplace operation. The direct vent system on this Kingsman gas fireplace is a simple closed flue system that allows for air and combustion gas to enter and exit out of the same coaxial flue pipe, making it one of the most efficient gas stoves on the market.
Standard Features
- Hi/low Millivolt or IPI valve system, will operate during power failures
- Proprietary burner, with realistic burn
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
Optional Features
Surround – Hearth Mount, Black
Covers Framing Dimensions (39″ w x 34 1/16″ h)
Surround – Flat, Black
Covers Framing Dimensions (40 7/8”w x 37 1/4”h)
Fan Kit
Heat activated with variable speed control
Wall Mount Thermostat
Standard On/Off or Programmable 5 day (weekday) and 2 day (weekend)
Remote Control
On/Off, Thermostat On/Off, Thermostat On/Off modulating
Liners
Porcelain Reflective Liner, Metal Brick Liner
Log Set
LOGC51 Oak Log Set
Wall Mount Battery Holder (WMBH) :
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
Optional Surrounds
OPTIONAL SURROUND
ZCV36S1BL - Surround Hearth Mount - Black (Coverage 34 1/16" H x 39" W)
(Covers Framing Dimensions - Fireplace must be installed flush to wall)
OPTIONAL WALL SURROUND FLAT
ZCV36SWFBL - Wall Surround - Flat - Black - 3/4" Depth - (COVERS 40 7/8" W X 37 1/4" H)
(The fireplace must be installed flush to drywall and raised a minimum 1/2" off floor)

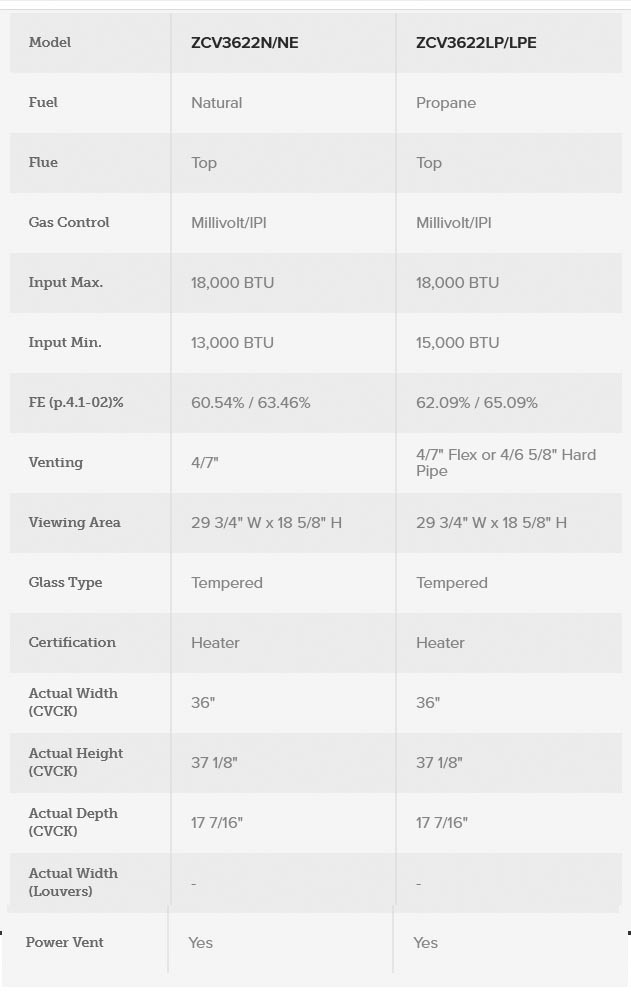

Specifications
Documentation
