Product Overview
Kingsman 39" Direct Vent Gas Fireplace - ZCV39
Bring warmth and style to your home with the sleek Kingsman 39" Zero Clearance Direct Vent Gas Fireplace - ZCV39. Customize this zero clearance fireplalcle to fit your needs and décor and add that finishing touch to your room. This Kingsman Direct Vent, Clear View, Gas Fireplace can produce up to 25,000 BTUs and is available in natural gas or liquid propane.
Select from a millivolt or intermittent pilot ignition system for the Kingsman 39" Zero Clearance Direct Vent Gas Fireplace. The millivolt valve system does not use electricity, but it has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and conserves energy when the appliance is not in operation.
Features:
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Safety Screen Barrier
Optional Features
Fan Kit
Heat activated with variable speed control
ZCV39 Surrounds
Hearth Mount 4” Wide (Covers 40 5/8” W x 35” H)
Picture Frame 4” Wide (Covers 40 5/8” W x 37” H)
Picture Frame 1 5/8” Wide (Covers 36 1/8” W x 32 1/2” H)
Glass Tray
Ember Glass (Bronze) – (ZCV39/42 only)
Accent Lighting
For use with the Glass Tray – (ZCV39/42 only)
Log Set
LOGF3 Log Set (ZCV39/42 only)
LOGC44 Log Set (ZCV34 only)
Porcelain Reflective Liner
Brick Refractory Liner

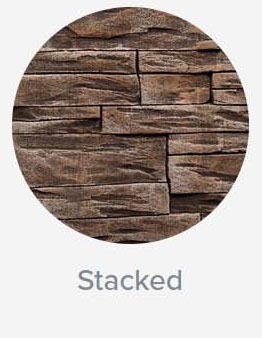

Traditional, Herringbone, Red Herringbone (ZCV39/42 only),
and Stacked (ZCV39/42 only)
Thermostat
Wall Mount Thermostat or Programmable Thermostat
Remote Control
Thermostat on/off, Thermostat on/off modulating, Thermostat on/off modulating and fan control
Vented Chase
Front Grill or Side Grills
Wall Mount Battery Holder (WMBH):
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.

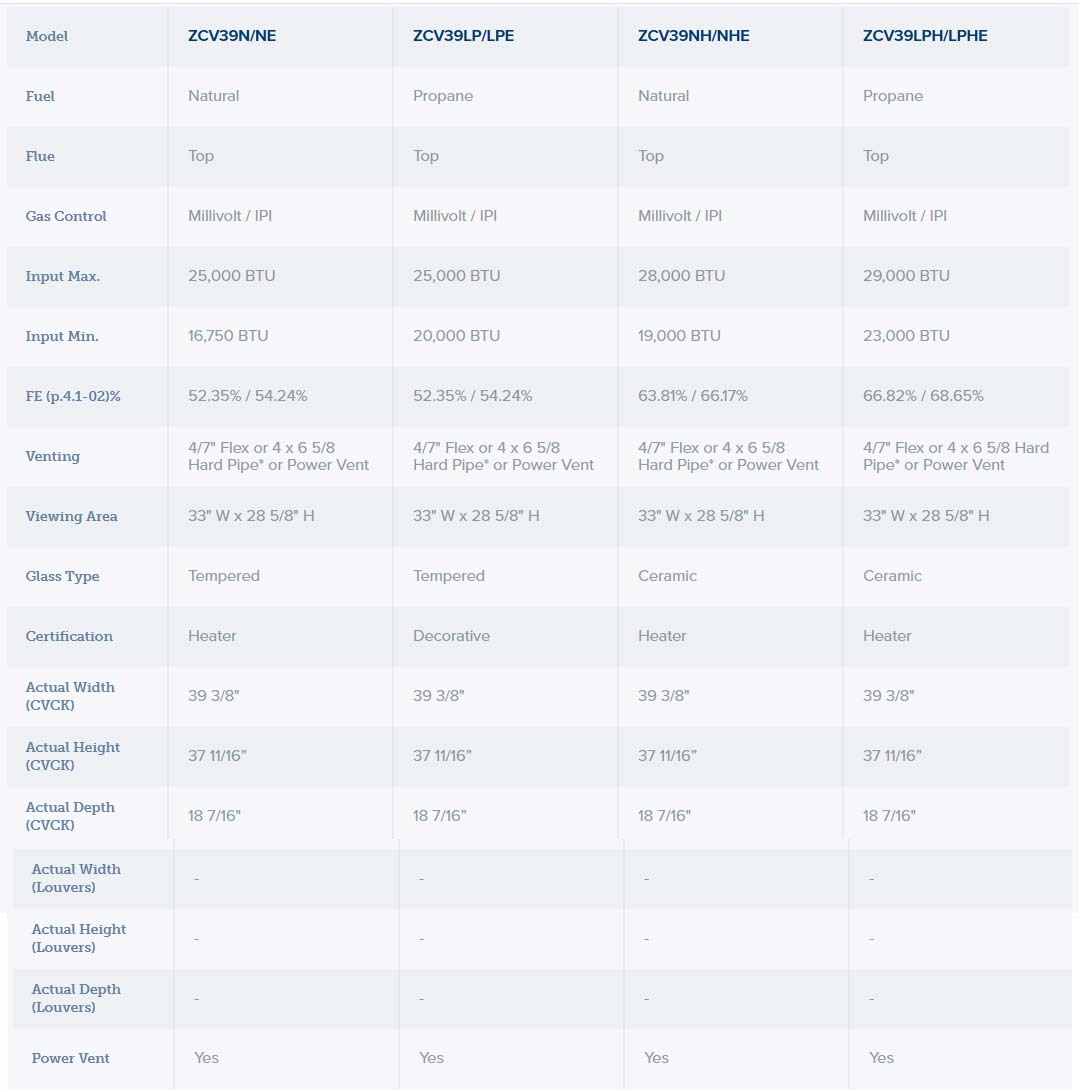

Speicifications
- Type: Direct Vent
- Style: Single Face Fireplace
- Fuel Type: Propane | Natural Gas
- Venting Type: Natural Draft
- Certification: ETL Listed
- Ignition: Intermittent Pilot Ignition | Millivolt
- Color Family: Black
- Overall Width: 39 3/8"
- Overall Depth: 18 3/8"
- Overall Height: 37 3/4"
- Heat Output: 25,000 BTUs
- Viewing Width: 33"
- Viewing Height: 28 5/8"
- Color: Black
- Safety Barrier Approved: Yes
Documentation
LIMITED LIFETIME WARRANTY
This Limited Lifetime Warranty applies only while the unit remains at the site of the original installation and only if the unit is installed inside the continental United States, Alaska, Hawaii, and Canada. The warranty applies only if the unit is installed and operated in accordance with the printed instructions and in compliance with applicable installation and building codes and good trade practices.
BASIC ONE YEAR WARRANTY
During the first year after installation, we will provide a replacement for any component part of your unit found to be defective in materials or workmanship, including labour costs. Repair work requires prior approval by Kingsman, labour costs are based on a predetermined rate schedule and any repair work must be done through an authorized Kingsman dealer
