Product Overview
Kingsman ZCV42 Zero Clearance Direct Vent Gas Fireplace
This stylish gas fireplace has an expansive glass viewing area coupled with clever designer options allowing for customizing the look to your taste - and this is only a portion of this Kingsman Zero Clearance model's allure.
Key Features
- Dedicated clean view appliance
- Millivolt or IPI valve system allows operation during a power failure with Hi/Low heat and flame adjustment
- Pan burner with realistic flame pattern
- Safety screen barrier
- 4/7" Flex or 4" x 6-5/8" hard Pipe or power vent
ZERO CLEARANCE CLEAN VIEW DIRECT VENT GAS FIREPLACE 42" Wide
Listed for USA/Canada as a Decorative Vented Gas Fireplace, SIT Valve with Hi/Lo
Flame Adjustment, Wall Switch, 4/7" Sloped Top Flue, Tempered Glass Viewing
Area 33 5/8" W x 27 1/4" H, Safety Screen, Framing 42 1/2" W x 41" H x 18 1/2" D
STANDARD FEATURES
• Dedicated Clean View appliance
• Millivolt or IPI valve system allows operation during
a power failure with Hi/Low heat and flame adjustment
• Pan burner with Realistic Flame Pattern
• Safety Screen Barrier*
OPTIONAL FEATURES
Fan Kit
Heat activated with variable speed control
Picture Frame Surrounds
ZCV42 Surrounds
• Hearth Mount 4” Wide (Covers 44 5/8” W x 38 1/8” H)
• Picture Frame 4” Wide (Covers 44 5/8” W x 40 1/8” H)
• Picture Frame 1 5/8” Wide (Covers 40 1/8” W x 35 5/8” H)
Porcelain Reflective Liner
Glass Tray

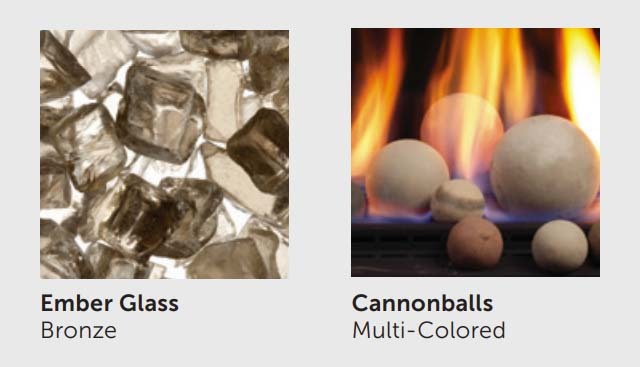

Ember Glass (Bronze)
Accent Lighting
For use with the Glass Tray
Log Set
LOGF3 Log Set – Five Pieces

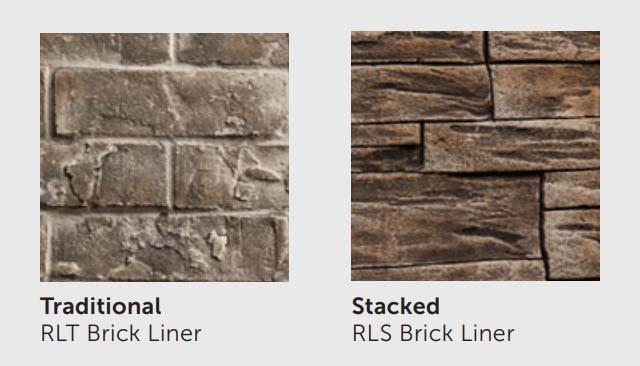

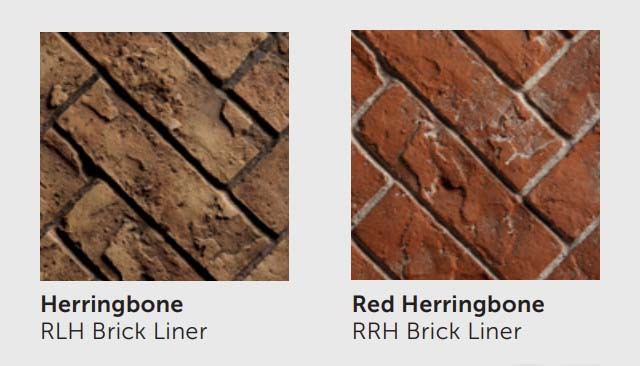

Brick Refractory Liner
Traditional, Herringbone, Red Herringbone and Stacked
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control
Thermostat on/off, Thermostat on/off modulating,
Thermostat on/off modulating and fan control.
* All gas fireplaces manufactured as of January 1, 2015 will include a Safety Screen Barrier
|
BENTLEY 39” |
|
|
BENTLEY 42” |
|
Model |
ZCV39N/NE |
ZCV39NH/NHE/NHE2 |
|
ZCV42N/ZDV42NE |
ZCV42NH/NHE/NHE2 |
Fuel |
Natural |
Natural |
|
Natural |
Natural |
Flue |
Top |
Top |
|
Top |
Top |
Gas Control |
Millivolt/IPI |
Millivolt/IPI |
|
Millivolt/IPI |
Millivolt/IPI |
Input Max. |
25,000 BTU |
28,000 BTU |
|
25,000 BTU |
29,500 BTU |
Input Min. |
16,750 BTU |
19,000 BTU |
|
16,500 BTU |
20,000 BTU |
FE (p.4.1-02)% |
53.6% / 54.9% |
64.6% / 67% |
|
54.2% / 55.7% |
65.2% / 67.2% |
Flue Sizes |
4/7" |
4/7" |
|
4/7" |
4/7" |
Glass Size |
31 19/32"W x 26 9/32"H |
31 19/32"W x 26 9/32"H |
|
35 5/8" W x 29 9/32"H |
35 5/8" W x 29 9/32"H |
Glass Type |
Tempered |
Ceramic |
|
Tempered |
Ceramic |
Size (WxHxD) |
39 3/8"W x 37 3/4"H x 18 3/8"D |
39 3/8"W x 37 3/4"H x 18 3/8"D |
|
42 3/8"W x 40 7/8"H x18 3/8"D |
42 3/8"W x 40 7/8"H x18 3/8"D |
Viewing Area |
29 5/8"W x 24 1/8"H |
29 5/8"W x 24 1/8"H |
|
33 5/8"W x 27 1/4"H |
33 5/8"W x 27 1/4"H |
Venting |
4/7" Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
4/7” Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
|
4/7” Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
4/7” Flex or 4 x 6 5/8 Hard Pipe* or Power Vent |
Electronic Ignition |
Yes |
Yes |
|
Yes |
Yes |
Certification |
Decorative |
Heater |
|
Decorative |
Heater |
Bedroom Approved |
Yes |
Yes |
|
Yes |
Yes |
|
|
|
|
|
|
