Product Overview

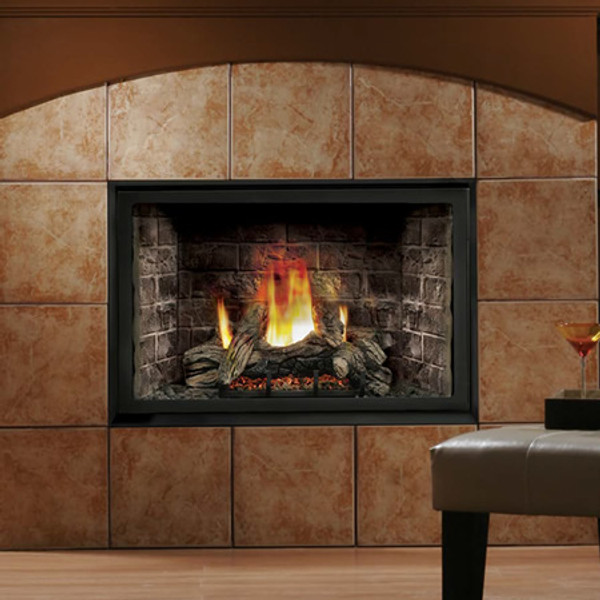

Kingsman HB4228 Zero-Clearance Direct Vent Gas Fireplace
Cozy up with the Kingsman HB4228 Zero-Clearance Direct Vent Gas Fireplace Heater. This fireplace offers a great amount of heat for your living area and looks stylish! This fireplace offers 28,000 BTUs with natural gas or 26,000 BTUs when used with propane.
ZERO CLEARANCE DIRECT VENT GAS FIREPLACE ‐ 42" WIDE
Listed for USA/Canada as a Vented Gas Fireplace, Dual Burner, SIT Valve with Hi/Lo,
Wall Switch, 4/7" Sloped Top Flue, Ceramic Glass, Safety Screen
Framing Louvered 42 3/8" W x 37 1/4" H x 17" D
Features:
- Listed for USA/Canada as a gas fireplace heater
- Dual burner with realistic flame patterns
- SIT valve with hi/lo wall switch
- Approved for bedroom and mobile home
STANDARD Features
• Millivolt valve system allows operation during a power failure with Hi/low heat and flame adjustment
• Dual burner with Realistic Flame Pattern
• A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
Optional Features
Designer Clean View Circulating Kit – (No Louvers Required), Optional Pull Screens
Decorative Black Panels or Grills – Grills available in Black, or Classic Series Black with Polish Brass, Antique or Chrome Accents
Overlay Doors – Deluxe, Top Half, Double Arch and Double Door
Designer Doors – Arch or Straight Black Doors with Antique, Polished or Chrome Trims
Surrounds Wide (Louvered Units) - Polish Brass, Antique or Chrome
Coverage – HBZDV4224/28 – 375/8” h x 45 1/8” w
Surrounds Slim Line (Louvered Units) - Polish Brass, Antique Brass, Chrome or Gun Metal Black,
Coverage – HBZDV4224/28 – 373/8” h x 433/8” w
Fan Kit – Heat activated with variable speed control
Thermostat – Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control – On/Off, Thermostat
On/Off, Hi/Lo On/Off
Child Safety Screen
Log Sets – Choose from our LOGC42 Classic Oak
Four Piece or LOGC43 Traditional Oak Four Piece or LOGC44 Burnt Oak Eight Piece Log Sets
Brick Refractory Liner – Traditional, Herringbone, Red Herringbone and Classic
Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity, but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.
This fireplace has a flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if the pilot is not sensed. This quality fireplace allows you to enjoy the beauty of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home.
The coaxial vent system is a pipe inside a pipe (generally 4" inside/7" outside). The inside pipe is for exhaust, while the outer pipe brings in outside air for combustion. The design of allows for a completely sealed system that does not compromise inside air quality of your home. It also lets you vent a product horizontally (great for when an appliance is installed on an outside wall). Direct vent appliances are usually limited to a length of 40ft (with a maximum horizontal length of 15ft) that will allow an appliance to function properly.
