Product Overview

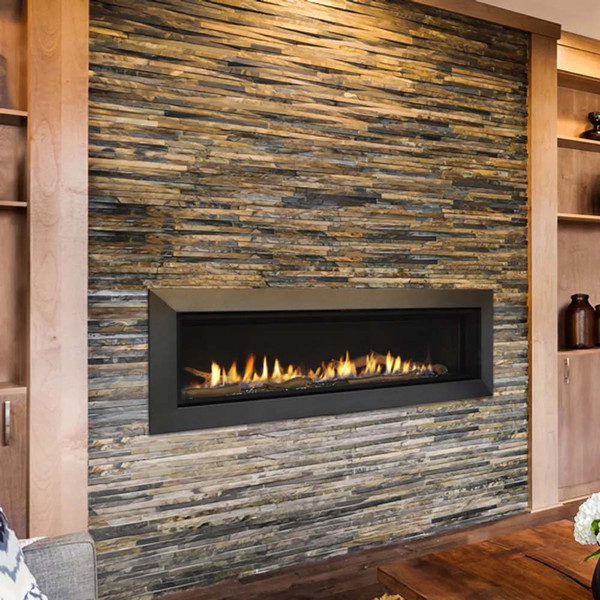

Majestic Echelon II 48" Direct Vent Gas Fireplace
Making fond memories starts with something special. The exclusive Echelon II series gas fireplace creates an ambiance to relax and enjoy life. Active flames and interior options give this contemporary gas fireplace a unique look. Get lost in its fire and the brilliance of glass illuminated by lights. Come home to the single-sided or see-through Echelon II series gas fireplace, and enjoy the entertainment and romance you deserve.
Features
- Showcase the interior with glass illuminated by LED lights
- Customize the interior with Reflective Black Glass panels, driftwood logs, natural stone and glass firebed options
- Optional heat distribution systems direct warmth to more areas of the home
- Available in 36”, 48”, 60” or 72” models
Includes:
- 21,000 - 40,000 Btu/Hour Input (NG)
- 20,000 - 34,000 Btu/Hour Input (LP) If changing media, follow required
- number of bags below:
- Clear LED Lights Glass media: 4 bags
- IntelliFire Plus ignition system Natural stones: 3 bags of stone
- Battery backup Log set & stones: 1 bag of stone
- RC300 remote control
- Ceramic glass
- Standard with bronze glass media
* Required to Complete - Sold Separately: Front
ECHEL48IN SPECS
| Size: | 48" |
|---|---|
| Dimensions: | 58" (W) x 41-3/4" (H) x 17-1/8" (D) |
| Framing Dimensions: | 60-1/4" (W) x 42" (H) x 18-1/4" (D) |
| Heating Capacity: | Up to 1300 sq ft |
| Max BTU/hr: | 40,000 |
| Fuel Type: | Natural gas or liquid propane by conversion |
| Glass Size: | 47-1/2" x 12-1/2" |
Make It Your Own
 |
 |
 |
 |
 Stone Kit |
 Diamond Glass |
 Onyx Glass |
 Bronze Glass |
 Saphire Glass |
 IntelliFire Plus RC300 |
Model Specifications
Echelon II 48
| Appliance Width: | 58" |
|---|---|
| Appliance Height: | 41-3/4" |
| Appliance Depth1: | 17-1/8" |
| Appliance Rear Width: | 58" |
| Framing Height: | 42" |
| Framing Depth2: | 18-1/4" |
| Framing Front Width: | 60-1/4" |
| Framing Back Width: | 60-1/4" |
| Fuel Type: | Natural gas or liquid propane by conversion |
| BTU/hr Input: | 40,000 (NG); 34,000 (LP) |
| Heating Capacity3: | Up to 1,300 sq ft |
| Viewing Area: | 47-1/2 x 12-1/2" |
Efficiency
Echelon II 36
| Steady State: | 46.0% NG |
|---|---|
| AFUE: | 44.6% NG |
| Canada EnerGuide: | 47.7% NG |
1 Appliance Depth includes entire unit including depth of firebox and extension onto hearth.
2 Framing depth will vary if you are installing the lower profile power vent (PVLP-SLP) with a minimum vent configuration. 12-1/2” is needed from the back of the appliance to the outside of the exterior wall. Refer to manual for details.
3 This is a general guide, see your local dealer for help in determining the product that best suits your heating needs based on climate, home efficiency, location of the heater, and air movement in the room.
Heat output will vary depending on the type of fuel used. The flame and ember appearance may vary based on the type of fuel burned and the venting configuration used. Actual product appearance, including flame may differ from image shown. Refer to the owner's manual for complete clearance requirements and specifications. Product specifications and pricing subject to change without notice. For testing and listing information please refer to the owner's/installation manual.
*For select products: Heating capacity to be used as a guide only. See your local dealer for help in determining the product that best suits your heating needs based on climate and home efficiency.
