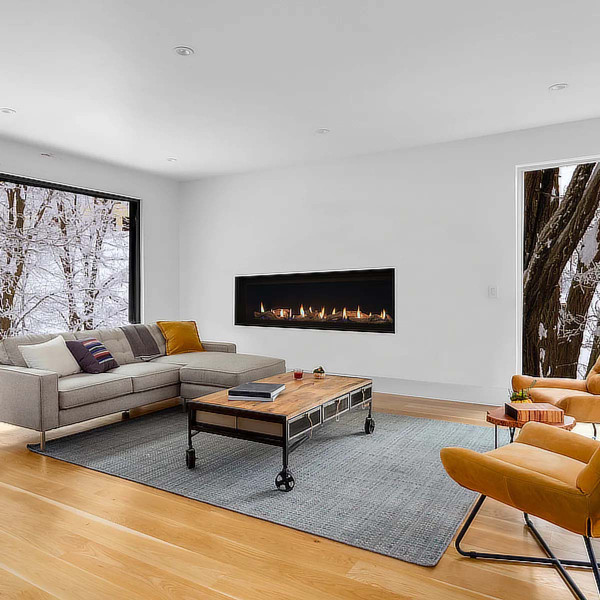

Product Overview
he Superior Drl4060 60" Linear Gas Fireplace, Contemporary Style Large Gas Fireplace. The Drl4000 Series Fireplaces Can Be Configured As A Single Sided Gas Fireplace Or Converted To A See Through Double Sided Gas Fireplace With A Easy To Install Conversion Kit. The Drl4000 Series Gas Fireplaces Also Offer A Optional Heat Flow Kit Designed To Transfer Heat To Above your Wall Decorations Or Tv Mounted Above The Fireplace. If You Have Any Questions Please Feel Free To Reach Out To Our Superior Gas Fireplace Experts Who Can Help You Plan Your Installation.
The DRL4000 Series linear direct vent gas fireplace offers a sleek modern appearance that is right at home in contemporary and transitional spaces. An expansive ceramic glass opening provides an exceptional view of the gently dancing flames rising through the beautiful reflective black glass floor media. Add the optional heat circulating blower and multi-function remote for the ultimate in comfort and control.
STANDARD FEATURES
- Available in 60”, 72" and 84" linear configured models
- See through conversion kit available to allow viewing from two living spaces
- HeatFlo™ kit option allows heat to be directed above heat sensitive wall hangings
- Electronic ignition with battery backup provides continued operation in the event of a power outage
- Clean-face design with integrated tile stops for easy finishing
- Ceramic glass for optimum heat transfer and a protective screen*
- Black painted interior standard with a reflective glass liner available
- Reflective black crushed glass media included with several optional colors available to customize the look
- Optional blower and hand held multi-function remote control available**
- 20-year limited warranty
| Model | DRL4060 | DRL4072 | DRL4084 |
|---|---|---|---|
| Venting Type | Direct Vent | Direct Vent | Direct Vent |
| Framing Width | 74-1/4" | 86-1/4" | 98-1/4" |
| Framing Height | 48-1/2" | 48-1/2" | 48-1/2" |
| Framing Depth | 19-1/2", 18-1/2" (See Through) | 19-1/2", 18-1/2" (See Through) | 19-1/2", 18-1/2" (See Through) |
| BTU | 40,000 - 28,000 | 45,000 - 31,500 | 50,000 - 35,000 |
| Style | Contemporary | Contemporary | Contemporary |
| View Style | Optional See Through | Optional See Through | Optional See Through |
| Controls | Remote Control | Remote Control | Remote Control |
| Rating | |||
| Warranty | 20 year limited warranty | 20 year limited warranty | 20 year limited warranty |
DOWNLOADS
- Brochure
- Installation and Operation Manual - DRL4000 60-72-84 TEN-B DV Fireplace SIT-PF1
- Instruction Sheet
- Installation Instructions HeatFlo Kit
- Specification Sheet - DRL4000 and DRL6000 60-72-84 TEN-B DV FP
