Kingsman Zero Clearance Direct Vent Linear Gas Fireplace ‐ 72"
Kingsman 72 Inch Wide Zero Clearance Direct Vent Linear Gas Fireplace - ZCVRB72
This stylish Kingsman 72 inch zero clearance gas fireplace has an expansive glass viewing area coupled with clever designer options allowing for customizing the look to your taste - and this is only a portion of this Kingsman Zero Clearance model's allure.
The chase of the appliance may be vented to achieve Cool Touch Walls or reduced Mantel Clearances.
The following options are available to vent the chase:
- The top of the chase can be left open.
- A grill can be installed on the front of the chase.
- If the chase bumps out into the room, side grills can be installed on each side of the chase.
Minimum enclosure height for a vented chase is measured from bottom of fireplace, ventilation of minimum free air opening is required. Choose between our Enclosure Grills (Front or Sides) or Custom Grill (if custom grills are used the louvers cannot slope) or adequate ventilation opening as stated in the manual. Grill or opening must meet minimum (as specified in the installation manual) of chase top/ceiling.
Standard Features
- Hi/Low Millivolt or IPI valve system will operate during power failures
- Decorative Bronze Glass
- Mobile Home, Bedroom and Bed Sitting Room approved
- Safety Screen Barrier
Optional Features
SurroundStainless Steel or Black
Fan Kit
Heat activated with variable speed control
Universal Light Kit
Accent Lighting – Halogen Lamps
Wall Mount Thermostat
Standard On/Off or Programmable 5 day (weekday) and 2 day (weekend)
Liner
Porcelain Reflective

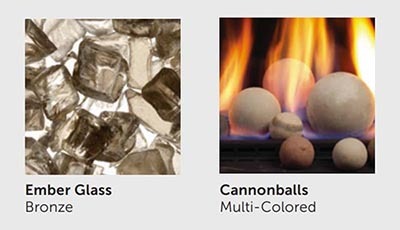

Media Options
Glass Embers- Bronze or Multi-Colored Cannonballs
Remote Control
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
Wall Mount Battery Holder (WMBH):
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
Enclosure Grill
Front – ZCVRB60 60 5/8” W x 3 5/8” H
Sides – ZCVRB60 15 1/4” W x 6 5/8” H
SPECIFICATIONS
Fuel: Propane / Natural
Flue: Top
Gas Control: Millivolt / IPI
Input Max.: 50,000 BTU
Input Min.: 39,000 BTU / 34,000 BTU
FE (p.4.1-02)%: 53.14% / 53.64%
Venting: 5/8" Flex or Hard Pipe
Viewing Area: 73 7/8" x 20"
Glass Type: Ceramic
Certification: Heater
Actual Width (CVCK): 78 3/4"
Actual Height (CVCK): 40 5/16"
Actual Depth (CVCK): 19 3/8"
