Kingsman HB3624 Zero-Clearance Direct Vent Gas Fireplace

The Kingsman HB3624 Zero-Clearance Direct Vent Gas Fireplace is a quality fireplace will allow you to enjoy the beauty of glowing embers and up to 85% maximum efficiency. Be assured that this Kingsman Direct Vent fireplace is safe, and  offers comfort and a long lasting value!

Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity, but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.

The Kingsman HB3624 Zero-Clearance Direct Vent Gas Fireplace is a quality fireplace will allow you to enjoy the beauty of glowing embers and up to 85% maximum efficiency. Be assured that this fireplace is safe, offers comfort and a long lasting value!

STANDARD Features

• Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
• Dual burner with Realistic Flame Pattern
• A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
• Safety Screen Barrier

Optional Features

Designer Clean View Circulating Kit
(No Louvers Required)

Grills
Available in Black

Surrounds Wide (Louvered Units)
Available in Black
Coverage • HBZDV3624/28 – 35 1/2” h x 41 1/8” w
Coverage • HBZDV4224/28 – 37 5/8” h x 45 1/8” w

Fan Kit
Heat activated with variable speed control

Liners
Traditional Brick, Herringbone Brick or Porcelain Reflective

Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat

Remote Control
Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control

Log Set
LOGC44 Burnt Oak Eight Piece Log Set (Required)

Wall Mount Battery Holder (WMBH):
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.

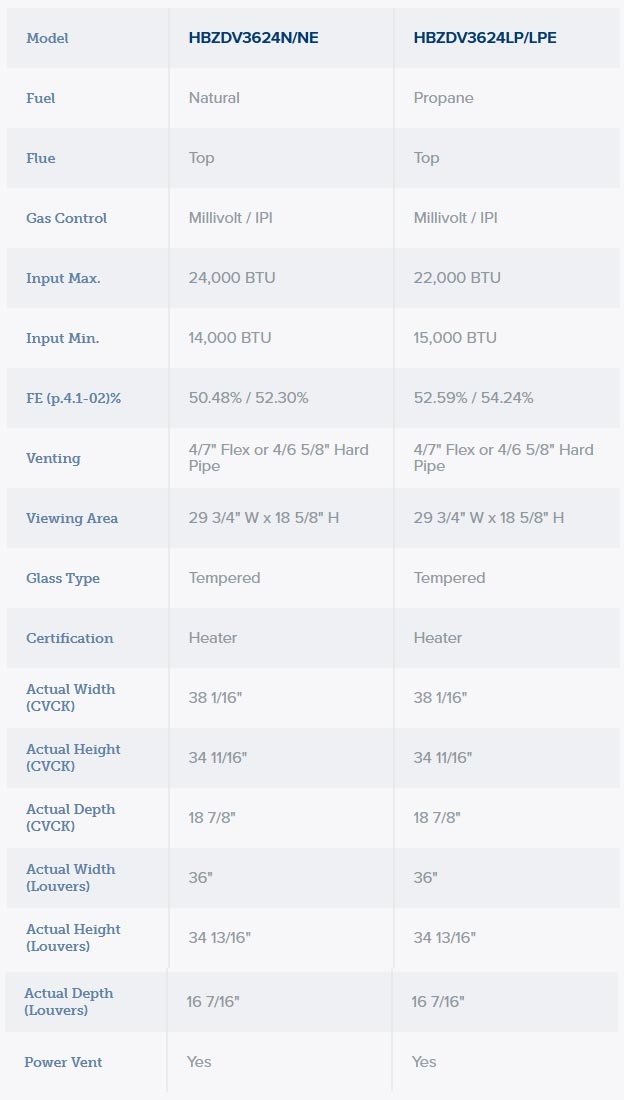

Specs
