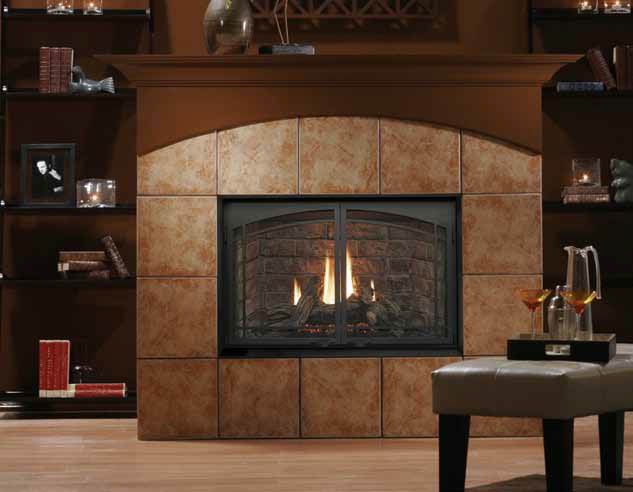

Kingsman HB4228 Zero-Clearance Direct Vent Gas Fireplace
Cozy up with the Kingsman HB4228 Zero-Clearance Direct Vent Gas Fireplace Heater. This fireplace offers a great amount of heat for your living area and looks stylish! This fireplace offers 28,000 BTUs with natural gas or 26,000 BTUs when used with propane.
ZERO CLEARANCE DIRECT VENT GAS FIREPLACE ‐ 42" WIDE
Listed for USA/Canada as a Vented Gas Fireplace, Dual Burner, SIT Valve with Hi/Lo,
Wall Switch, 4/7" Sloped Top Flue, Ceramic Glass, Safety Screen
Framing Louvered 42 3/8" W x 37 1/4" H x 17" D
Features:
- Listed for USA/Canada as a gas fireplace heater
- Dual burner with realistic flame patterns
- SIT valve with hi/lo wall switch
- Approved for bedroom and mobile home
STANDARD Features
- Millivolt or IPI valve system allows operation during a power failure with Hi/low heat and flame adjustment
- Dual burner with Realistic Flame Pattern
- A flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if pilot is not sensed
- Safety Screen Barrier
Optional Features
Designer Clean View Circulating Kit
(No Louvers Required)
Grills
Available in Black
Surrounds Wide (Louvered Units)
Available in Black
Coverage • HBZDV3624/28 – 35 1/2” h x 41 1/8” w
Coverage • HBZDV4224/28 – 37 5/8” h x 45 1/8” w
Fan Kit
Heat activated with variable speed control
Liners
Traditional Brick, Herringbone Brick or Porcelain Reflective
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control
Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
Log Set
LOGC44 Burnt Oak Eight Piece Log Set (Required)
Wall Mount Battery Holder (WMBH):
The battery holder provides power to the IPI system in case of power failures. Locating the battery holder outside of the fireplace (wall mount), provides a convenient and accessible location for battery installation and removal.
Choose from a variety of decorative options to create your own distinctive appearance and be assured of complete safety, comfort and long lasting value. Select from a millivolt or intermittent pilot ignition system. The millivolt valve system does not use electricity, but has a standing pilot which allows operation during a power failure with hi-low heat and flame adjustment. The intermittent pilot ignition is electronic and uses an electrode to ignite the pilot. The IPI system ensures the pilot flame extends over the burner for immediate ignition and it conserves energy when the appliance is not in operation.
This fireplace has a flame sensor that constantly monitors the pilot flame and provides 100% gas shut off if the pilot is not sensed. This quality fireplace allows you to enjoy the beauty of glowing embers and dancing flames and up to 85% maximum efficiency. Create an elegant and warm focal point in your home.
The coaxial vent system is a pipe inside a pipe (generally 4" inside/7" outside). The inside pipe is for exhaust, while the outer pipe brings in outside air for combustion. The design of allows for a completely sealed system that does not compromise inside air quality of your home. It also lets you vent a product horizontally (great for when an appliance is installed on an outside wall). Direct vent appliances are usually limited to a length of 40ft (with a maximum horizontal length of 15ft) that will allow an appliance to function properly.

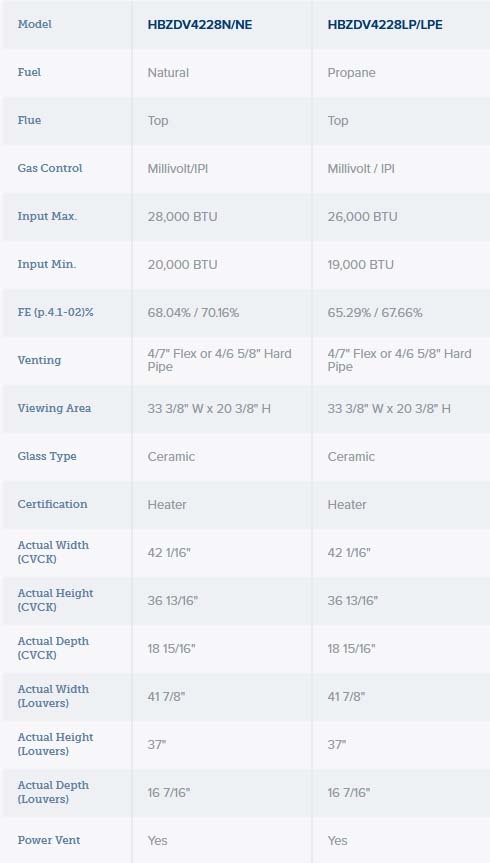

Specs
