Product Overview

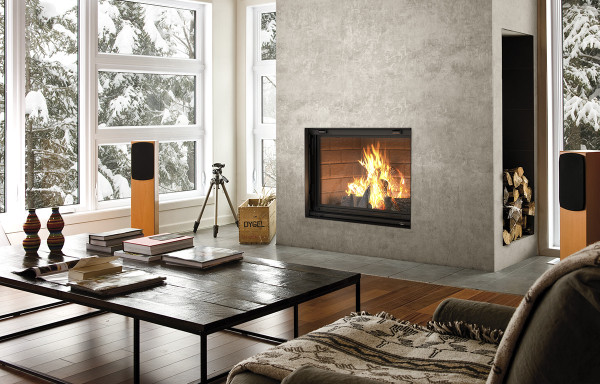

Valcourt Antoinette Wood Burning Fireplace
The Valcourt Antoinette Clean Burning Decorative Fireplace With Guillotine Door W/ Ceramic Glass . The Antoinette Fireplace Is A Modern Clean Burning Decorative Fireplace Capable Of Heating UP to 1.000 Square Feet. This Fireplace Vents On 8" Class A Chimney Using A Anchor Plate To Start The Stack. We carry All The Required Venting Contact Us For Assistance!
The US Environmental Protection Agency (EPA) initiated a voluntary program for manufacturers of decorative wood burning fireplaces to encourage them to produce clean wood-burning appliances that reduce air pollution.
Dare to design... the fireplace of your dreams, while being environmentally friendly.
The FP7CB Antoinette wood fireplace already qualifies for phase II of that program which aims emission levels at or below the target of 5.1 g/kg (approximately 70 percent cleaner than unqualified models). Thus, you can benefit from a product with low particulate emissions.
Moreover, another advantage of this Valcourt fireplace is its guillotine door that disappears to allow you to load wood on the fire or relax with the crackle of the open fireplace.
The firescreen is also on a guillotine mechanism so you can close it when the ceramic glass door is open. Why Antoinette? Finally, a positive historical reference to the guillotine! The guillotine door and clean front gives you the flexibility to design your fireplace in any way that suits you.
The Antoinette is a truly versatile fireplace and is all about giving you the ability to design your dreaming fireplace.
FEATURES:
- Heating area up to 1,000 sq. ft
- Guillotine mechanism on door and screen
- EPA qualified
General features
Fuel type | Dry cordwood (16" recommended) |
Recommended heating area-ft² | <1,000 |
Overall firebox volume-ft³ | 5.3 |
Average particulate emissions rate | 4.2 g/kg |
Burn rate | >5 kg/h (>11 lb/h) |
High-efficiency certified appliance | Low Mass |
Maximum log length | 18'' |
Log positioning | Loading over width |
Chimney diameter | 8" |
Type of chimney | CAN/ULC S629, UL 103 HT (2100 °F) |
Minimum chimney height (feet) | 15' |
Approved for a mobile home installation | No |
Shipping Weight | 523 lb (238 kg) |
Door type | Guillotine, glass with steel frame |
Glass type | Ceramic glass |
Glass surface – dimensions (Width X Height) | 29 3/4'' X 19 1/2'' |
Overall dimension (Height) | 64 1/8'' |
Overall dimension (Width) | 48 7/8'' |
Overall dimension (Depth) | 30 3/4'' |
Door opening – dimension (Height) | 21 1/4'' |
Door opening - dimension (Width) | 33'' |
Firebox – dimension (Height) | 21 3/4'' |
Firebox – dimension (Width) | 24 1/4'' |
Firebox – dimension (Depth) | 11 1/2'' |
Moulded refractory bricks | Yes |
Cast iron andirons | Yes |
USA standard (emissions) | ASTM 2515 / ASTM 2558 |
USA standard (safety) | UL 127 |
Canadian standard (safety) | ULC-S610 |
Warranty | Limited lifetime |
GUIDES
FP7CB Antoinette wood fireplace install & owner's manual
FP7CB Antoinette wood fireplace dimensions
FP7CB Antoinette wood fireplace quick install reference guide
PLANS & CAD
2D Diagrams - DWG File - FP7CB-VA7FE06
2D Diagrams - DWG File - FP7CB-VA7TR
2D Diagrams - DXF File - FP7CB-VA7FE06
2D Diagrams - DXF File - FP7CB-VA7TR
