Product Overview
The Valcourt Mundo Fp12 Wood Burning High Efficiency Fireplace , Modern Linear Style , Clean Burning Air Tight Zero Clearance Fireplace. The Mundo Is Capable Of Heating Up 2100 Sq Feet. This Fireplace Vents On 6" Class A Chimney, Use A Anchor Plate To Start Your Chimney Venting Off The Top Of The Fireplace. Proper Chimney Pipe For This Fireplace Can Be Found Under Class A Chimney Under Our Shop All Products Menu- Chimney & Venting Components. The Metalbestos Class A Chimney Is Ideal For This Application.

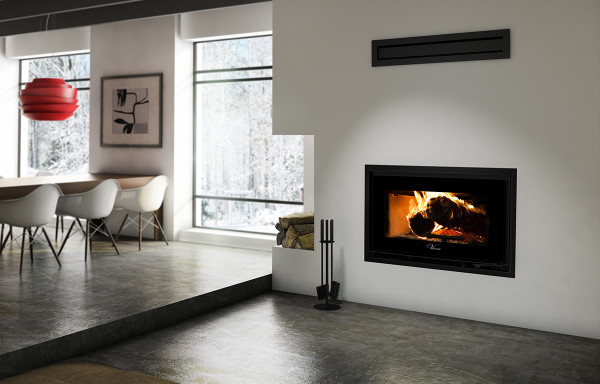

With its straight lines, simplistic shape and neutral color, the FP12 Mundo brings a gust of modernism into your home. It harmonizes both functionality and comfort perfectly.
Moreover, with its extra large clean face glass, the Mundo offers a view on the fire that is unmatched in the industry. This ecological fireplace is EPA certified with an emissions rate of 4.4 g/h and produces up to 75,000 BTU/h.
The heat distribution kit available with the Mundo will help you harness all the power from this incredible fireplace while keeping in mind the contemporary lines of your décor. The most serious of users will also want to install the forced air kit which will allow for better and more efficient heat transfers to a room further from the fireplace.
FEATURES:
- 75,000 BTUs
- Heating area of up to 2,100 sq. ft.
- Nine hour burn time
APPLIANCE PERFORMANCE (1)
| Fuel type : | Dry cordwood | |
| Recommended heating area (sq.ft.) : () | 500 - 2,100 | |
| Firebox nominal volume (cu. ft.) : | 2.5 | |
| Maximum burn time : () | 9 h | |
| Maximum heat output (dry cordwood) : (2) | 75,000 BTU/h (22.0 kW) | |
| Overall heat output rate (min. to max.) : (2) (3) | 11,500 BTU/h (3.4 kW) to 30,500 BTU/h (8.9 kW) | |
| Average overall efficiency (EPA cribs / Douglas fir) :(3) | 55.0 % (HHV) (4) | 60.0 % (LHV) (5) |
| Average overall efficiency (dry cordwood) : (3) | N.A. (HHV) (4) | N.A. (LHV) (5) |
| Optimum efficiency : (6) (7) | 75 % | |
| Average particulate emissions rate : (8) | 4.4 g/h | |
| Average CO : (9) | N.A. | |
GUIDES
FP12 Mundo wood fireplace install & owner's manual
(PDF - 7.8 Mo)FP12 Mundo wood fireplace dimensions
(PDF - 0.3 Mo)FP12 Mundo Quick Installation Reference Guide
(PDF - 0.5 Mo)
PLANS & CAD
2D Diagrams - DWG File
(DWG - 1.1 Mo)2D Diagrams - DXF File
(DXF - 4.4 Mo)3D Diagrams - STP File
(STP - 10.7 Mo)
